Product Description
Full sealed Design, Dustproof and Moisture Proof
All Anson readers adopt epoxy resin sealed design, which effectively protects reader from damp and dusty environment. With seamless connection technique, user can choose strong metal appearance or practical plastic appearance.
No Mechanical Wear and Durable

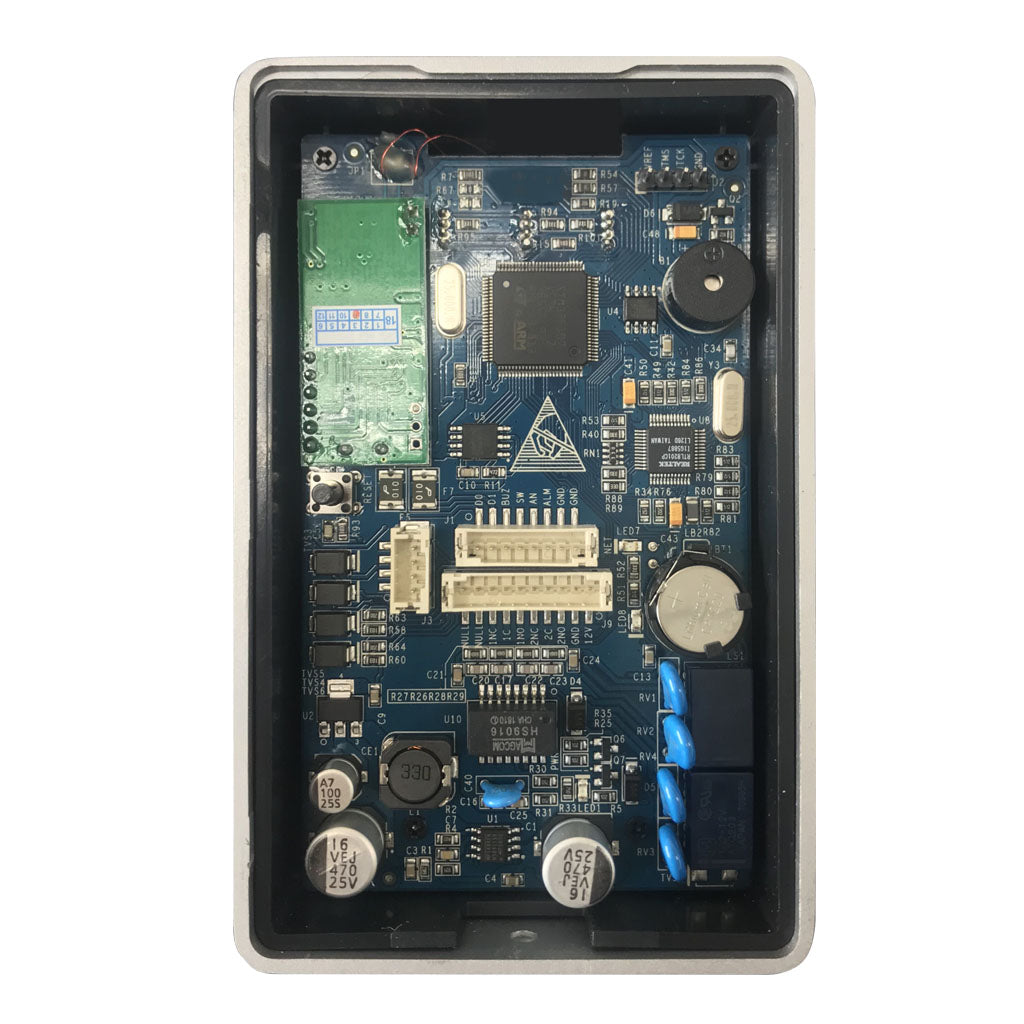

This device adopts advanced radio-frequency circuit design and built-in embedded high-end microprocessor. This greatly reduces the mechanical wear between reader and card and makes the reader durable.
Product Parameter
| Item | Parameter |
|---|---|
| Model | ASI-DE30 |
| Communication | TCP / IP |
| Recognition Mode | RFID / Password |
| User | 20000 |
| Record | 70000 |
| Lock Control Output | 1 |
| Door-magnet Input | 1 |
| Alarm Output | 1 |
| Wiegand Input | Wiegand26-34 |
| Exit Button Input | 1 |
| Working Temperature and Humidity | -10°C-45°C / 20%-60% |
| Power Supply | DC12V±10%/500mA |
| Size | L122XW77XH36mm |
